Specifications and dimensions |
210(w)×160(d)×20(h)mm |
|
Memory |
1G |
|
Storage |
eMMC：8G |
|
network interface |
4 X10/100/1000Mbps LAN port, 1 WAN port |
|
WiFi |
Supports 802.11 b/g/n 2.4G 5.8G; Support AP/Station |
|
SIM card slot |
1 standard 5G interface; 6 4G interfaces; Support mixed SIM card insertion for multiple operators |
|
WAN port aggregation |
Supported, can aggregate multiple links such as wired, mesh, satellite, etc |
|
5G |
Supports both 5G NSA and SA modes simultaneously |
|
Network Protocol |
Supports TCP/IP, UDP, FTP, HTTP, etc, Supports DHCPserver/client/relay, DNS client/proxy/relay, NAT, ARP, etc |
|
LTE |
support FDD/TDD LTE FDD LTE：B1/B3 TDD LTE：B38/B39/B40/B41 UMTS：B1 TD-SCDMA：B34/B39 GSM/GPRS/EDGE：850/900/1800/1900MHz CDMA2000：800MHz CDMA1x：800MHz |
|
working temperature |
-20°C ~70°C |
|
Working humidity |
0%~85% |
|
Power supply |
10-27V DC wide voltage |
|
Management and maintenance |
Web network management, system management, upgrade management, device management, SNMP (v1/v2c/v3), opening based on USB or SD card |
products
Contact US
Business cooperation
+86 0755-26906150
+86 134 8013 9095
Market cooperation
jintao047282@163.com
address
26th Floor, Phase II, International Student Entrepreneurship Building, No. 29 Gaoxin South Ring Road, Nanshan District, Shenzhen
You are here：Home >> products >> Multi card aggregation routin...
Multi card aggregation routing

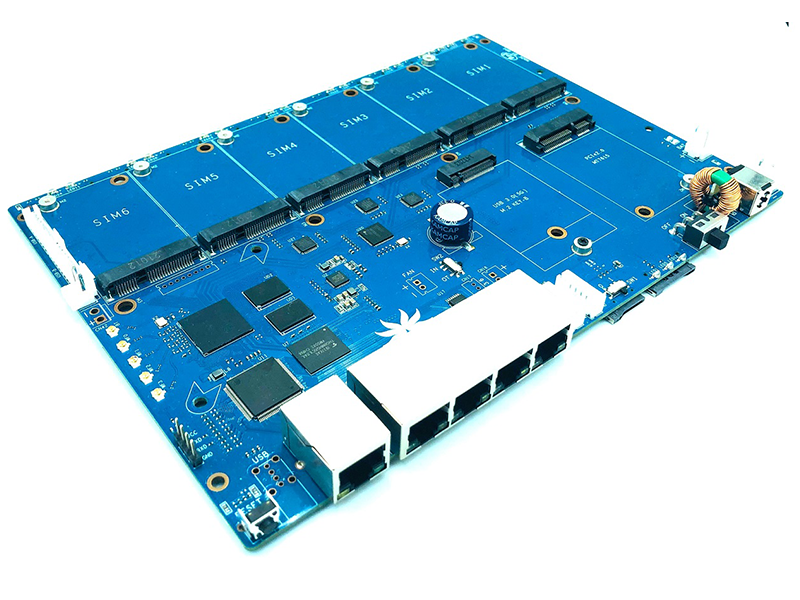

Multi Card Aggregation Module MNFM-7
The intelligent fusion communication module MNFM-7 provides multiple data call interfaces that can be flexibly embedded into various devices. Supports standard 5G applications and up to 6 4G LTE communication modules, using the multi card aggregation protocol independently developed by Xiaocao Technology.
