一、Product Overview
MNF-PRO intelligent 5G multi-link aggregation is a multi-network convergence communication technology based on operator wireless links. It provides stable and high-bandwidth wireless transmission for people in outdoor/mobile/non-fixed network scenarios, especially suitable for high-definition video transmission. At the same time, this technology also provides a solution for some special application scenarios. Currently, with the increasing application of high-definition video in various industries, related demands are rapidly growing.
二、Product Introduction

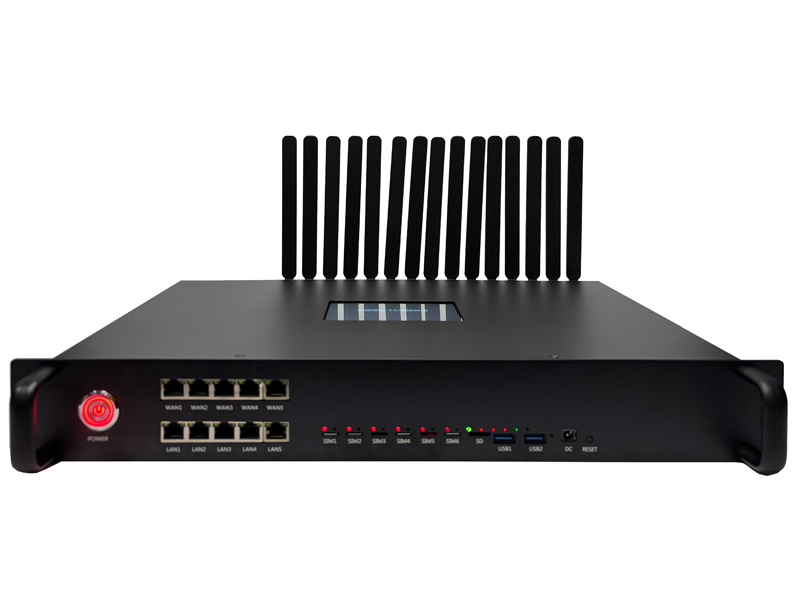

1. product appearance
2. Product functional parameters
l Equipped with an aggregation communication core algorithm, it supports dynamic real-time detection of link bandwidth. Utilizing industrial-grade motherboards and modules, it offers stability and efficiency, meeting the requirements of practical application environments. The fully integrated motherboard design (as opposed to a core development board + expansion board) ensures shock resistance and stability of the motherboard when in a mobile state. The motherboard configuration includes: quad-core MT7988A, 4GB DDR4 RAM, and 8GB eMMC;
l Equipment function parameter table
|
functional indicators |
parameter |
|
network interface |
5*10/100/1000Mbps WAN口 4 *10/100/1000Mbps LAN口 |
|
Specifications and Dimensions |
480 (w) × 300 (d) × 67.3 (h) mm 1.5U rack mounted, |
|
Protection level |
IP45， Support dust prevention during working conditions; |
|
wireless |
Fully compatible with the networks of China Mobile, China Unicom, and China Telecom, supporting mixed insertion of multiple standards and SIM cards Support FDD/TDD LTE FDD LTE: B1/B3 TDD LTE：B38/B39/B40/B41 UMTS：B1 TD-SCDMA：B34/B39 GSM/GPRS/EDGE：850/900/1800/1900MHz CDMA2000: 800MHz CDMA1x: 800MHz supports 5G NSA/SA standard |
|
WIFI |
6, supporting mixed insertion of China Mobile, China Unicom, and China Telecom, with up to 8 wireless network aggregation channels; Supports 2.4GHz and 5.8GHz multi frequency WiFi5, WiFi6, and WiFi7 coverage, supports MU-MIMO OFDMA 802.11ax, 2T2R, and supports concurrent connections for ≥ 200 terminals; Support AP/Station |
|
5G/4G module interface |
6, supporting mixed insertion of China Mobile, China Unicom, and China Telecom, with up to 8 wireless network aggregation channels; |
|
USB |
2 USB 3.0 ports, supporting expansion; |
|
SD |
1, supports SD card storage; |
|
network protocol |
Supports standard network protocols such as IP, TCP, UDP, HTTP, APN/VPDN, etc; |
|
WAN port link aggregation |
Support, and support both public and private networks MESH、 Satellite network aggregation link transmission, supporting bundled transmission of wireless and wired links, with a maximum of 14 links aggregated; |
|
aggregation efficiency |
The actual aggregation efficiency is not less than 80%; |
|
power supply |
220VAC； Rated power 30W. |
|
display screen |
Equipped with a front IPS full view LCD display screen, it can display device serial number, total speed, operator, network signal, network standard, uplink and downlink transmission speed information of each communication module, WAN port uplink and downlink speed, aggregation status, and device startup time information; The web interface client can also be conveniently operated on mobile phones and computers, displaying card slot status, WIFI status, real-time speed line graph, etc., and has corresponding configuration functions; |
|
encryption protocol |
Dynamic data splitting, encrypted transmission at the protocol layer to enhance the security of private data; Supports 4 or more types of encryption, including but not limited to Salsa20, AES-128-cfu, Chacha20 ietf po, rc4-md5, etc; |
|
algorithm |
Efficient bandwidth detection and congestion control algorithm, fully tapping into the bandwidth of each channel. In case of any abnormality in any channel, the data will be dynamically adjusted to other channels without affecting the overall data transmission; |
|
Operating Temperature |
-20°C～70°C； |
|
management and maintenance |
Web management, system management, upgrade management, device management, support for local or remote log output. Supports Console, local or remote HTTP, HTTPS, SSH, Telnet methods; |
